Introduction

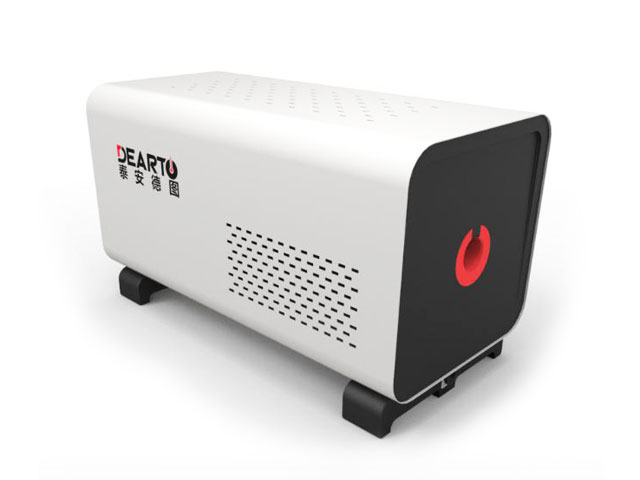

DTL-600BG Standard Thermocouple Calibration Furnace is a temperature field constant temperature equipment suitable for calibration of various types of standard thermocouples, working precious metal thermocouples, and inexpensive metal thermocouples. DTL-600BG thermocouple calibration furnace has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national calibration regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.
Technical parameters
◇ Furnace size: 40mm×600mm
◇ Temperature range: 300 ℃ ～ 1200 ℃
◇ Temperature field distribution: the high temperature point in the furnace deviates from the geometric center of the furnace by no more than 20mm, and the temperature change point within ± 20mm has a uniform temperature field within a gradient of ≤0.4 ℃ / 10mm.
◇ According to the rules and regulations: JJF1184-2007 thermocouple verification furnace temperature field test technical specifications. JJG141-2013 Verification Regulations for Precious Metal Thermocouples for Work.
◇ Scope of application: verification / calibration of S, R standard thermocouples, working S, R precious metal thermocouples, and inexpensive metal thermocouples.
Note: furnace inner size, temperature range can be customized non-standard
