Introduction

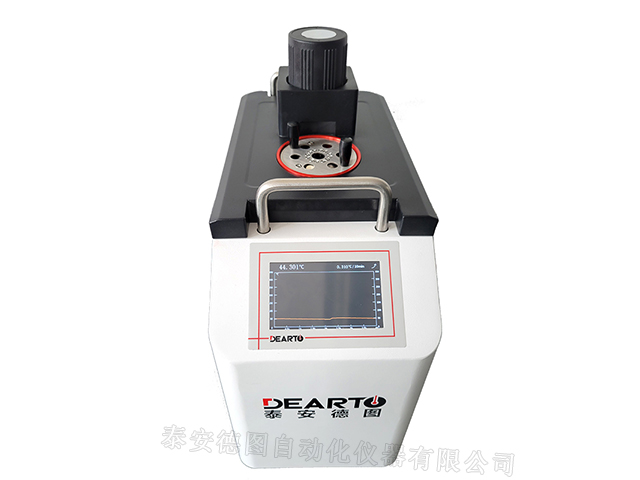

DTS-180BG portable intelligent thermostatic oil bath(calibration bath) is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control.
DTS-180BG portable calibration bath is compact in structure, light in weight, easy to carry and durable. Dts intelligent thermostatic bath is suitable for the on-site verification / calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.(Special index products can be customized according to requirements)
Technical Parameters
Product name | Intelligent small thermostatic oil bath | |
Model | DTS-300BG | DTS-180BG |
Temperature range | 60℃~300℃ | 60℃~180℃ |
Control method | Touch screen | |
Temperature fluctuation | ≤±0.02℃（60℃） ≤±0.02℃（100℃） ≤±0.03℃（200℃） ≤±0.035（300℃） | |
Temperature uniformity | ≤0.01℃（60℃） ≤0.01℃（100℃） ≤0.02℃（200℃） ≤0.02℃（300℃) | |
Power | 1KW | |
Display resolution | 0.001℃ | |
Work area size（mm） | Φ80×280 | |
Dimensions（mm） | 430(L)×228(W)×365(H) | |
Working medium | Silicone oil | |
Remarks | Flange size can be customized according to customer needs | |
Features | Sealed construction:Push-type quick seal design, anti-leakage, convenient on-site transportation | |
Hidden handle:Hidden handle design, convenient and easy to carry | ||
Intelligent touch screen:Smart touch screen, human-computer interaction interface, multi-function display window, support multi-touch | ||
Real-time curve display:Real-time display of temperature curve and automatic calculation of fluctuation | ||
Multi-point calibration and correction:Support multi-point temperature calibration and correction; automatic temperature control in sections, rapid heating | ||
Safe and reliable:With overheating protection, heating limit function, safe and reliable | ||
Communication function:With RS-232 communication interface, can be connected to the upper computer | ||
| Previous:DTS-300BG Ultra-Portable Intelligent Calibration Bath(Thermostatic Oil Bath) | next:Custom temperature and humidity verification/calibration chamber |
