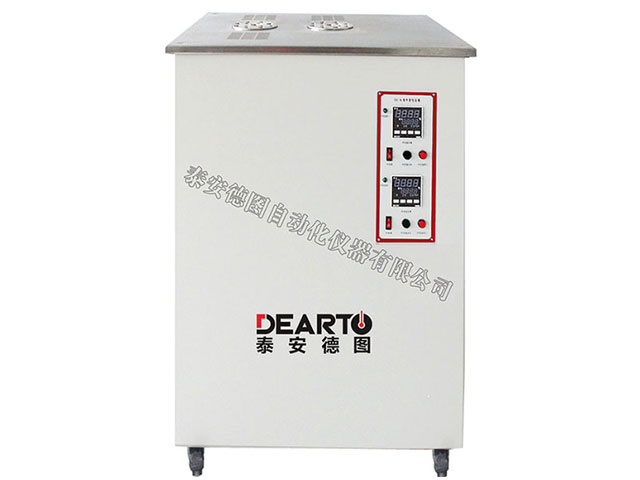

DTR Series Heat Pipe Thermostatic Calibration Baths

DTR Series Heat Pipe Thermostatic Calibration Baths

◇ Introduction ◇ Function◇ Parameter◇ Product order◇ Download◇ Related products

Introduction

DTR series heat pipe thermostatic calibration baths is a new product developed by our company using heat pipe technology. The series of heat pipe constant temperature tanks use circulating liquid, which widens the constant temperature area and realizes automatic temperature control.

DTR heat pipe calibration bath has the advantages of compact structure, convenient operation, high temperature control accuracy, and intuitive temperature reading.

DTR thermostatic bath is suitable for temperature measurement calibration in various measurement departments such as petroleum, chemical industry, meteorology, energy, environmental protection, medicine, measurement institutes, etc., and provides a constant temperature source of 50 ° C to 550 ° C.

DTR thermostatic bath mainly used for verification / calibration of various industrial thermal resistances, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetallic thermometers, pressure thermometers, transformer oil level / winding thermostats, etc.

Function

Fully sealed internal circulation, environmental protection, no odor, no pollution.

No mechanical stirring, no noise, no need to add media.

The temperature field has a wide range and a wide range of adaptation.

Fast temperature rise and cooling, saving time.

Patent number: ZL201320283122.7

Product overview of high temperature sailt bath:

DT20N high temperature sailt bath is a new product developed according to the requirements of the user for on-site verification. It has the same structure as the standard oil tank for laboratory use. It has an independent heating system, a stirring system, and an original temperature control imported from Japan up to level 0.1. The system provides users with accurate high-temperature heat sources, which is very suitable for industrial field and laboratory use.

Function

With 10 groups of P, I, D

With self-tuning function, non-professionals can also easily operate.

Steplessly adjustable stirring speed

Technical Parameters

Product name

High temperature sailt bath

Heat pipe thermostatic bath

Model

DT20NG sailt bath

DTR-01G calibration bath

DTR-02G calibration bath

DTR-03G calibration bath

Temperature range

180℃~550℃

50℃~300℃

200℃~400℃

300℃~550℃

Temperature fluctuation

±0.01℃/ 10min

±0.03℃/ 10min

±0.05℃/ 10min

±0.05℃/ 10min

Horizontal temperature field uniformity

≤0.01℃

≤0.03℃

≤0.03℃

≤0.03℃

Vertical temperature field uniformity

≤0.02℃

≤0.05℃

≤0.05℃

≤0.05℃

Operating Voltage

220VAC/ 50Hz

Rated power

2.0KW

1.5KW

1.5KW

1.5KW

Remarks

Customized liquid tanks with special media at 500 ℃ ~ 850 ℃, 850 ℃ ~ 1100 ℃
