Products Description

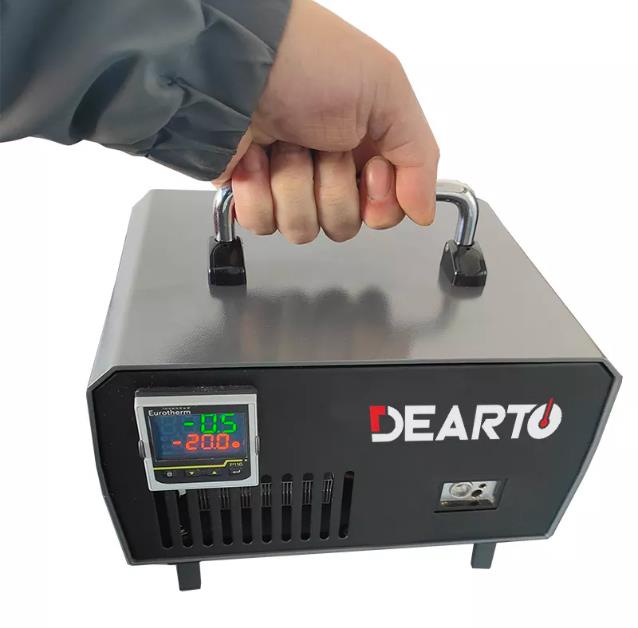

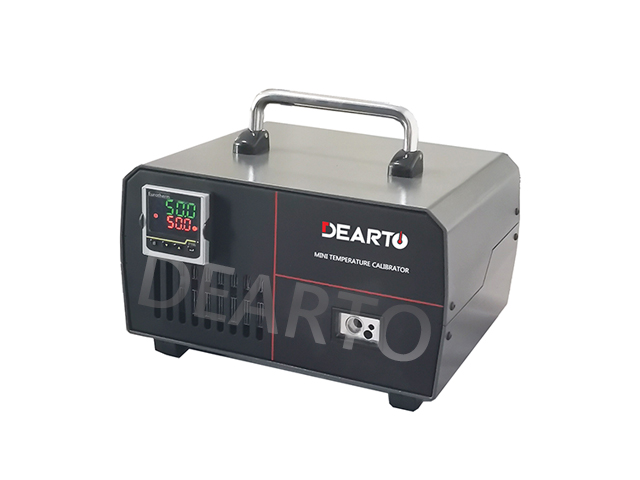

DT-ECT Micro Dry Well Furnace Temperature Calibrators is Taian DEARTO micro handheld dry type temperature calibration furnace, small and portable equipment, durable, simple operation, high accuracy.

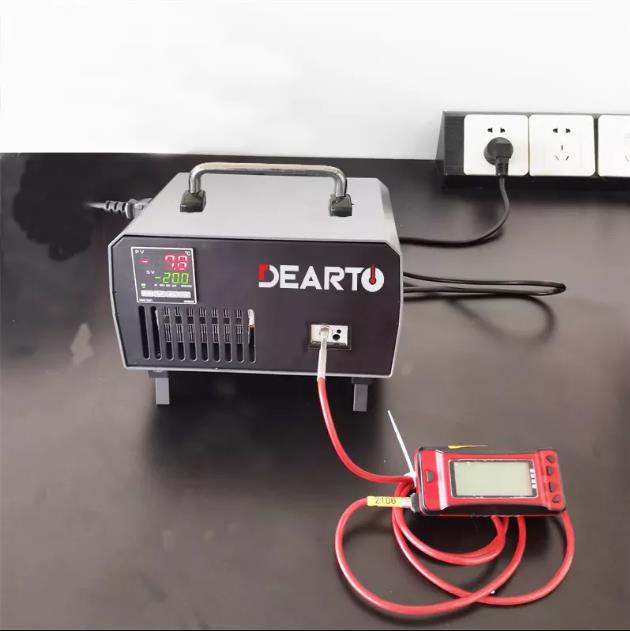

DT-ECT Micro dry well calibrator is especially suitable for the on-site calibration of thermal resistance, thermocouple, temperature switch with various diameters, and the calibration occasions where fast calibration is required and the sensor is not convenient to disassemble.
Product Features
1. Small and light, strong and durable, only weighing about 3kg, convenient on-site measurement calibration;
2. Fast calibration, 15 minutes can be stable;
3. The sleeve is replaceable and supports custom jack for a variety of sensors
4. RS-485 communication interface
Product Paramenters
| Model | ETC-150G Dry well calibrators | ETC-400G Dry well calibrators |
| Temperature range | -10℃~150 ℃ | 50℃~400 ℃ |
| Display resolution | 0.1℃ | 0.1℃ |
| Standard thermal block insert aperture diameter | φ4, φ6,φ7 | φ4.5,φ6.5,φ8,φ10 |
| Standard thermal block insert aperture diameter | Please indicate the insertion depth and outer diameter of the tested sensor when ordering (support customization) | Please indicate the insertion depth and outer diameter of the tested sensor when ordering (support customization) |
| Temperature fluctuation | ≤±0.1℃ | ≤±0.1℃ |
| Radial uniformity | ≤0.2℃ | ≤0.2℃ |
| Axial uniformity | ≤0.5℃ from bottom up to 40mm | ≤0.5℃ from bottom up to 40mm |
| Insertion depth | 110mm | |
Casing size | Φ12.5mmX120mm(L) | Φ30mmX110mm(L) |
| Overall dimensions | 230x180x125mm | 220x160x100mm |
| Power | 230W | 350W |
| Power supply | AC220V,50Hz | AC220V,50Hz |
